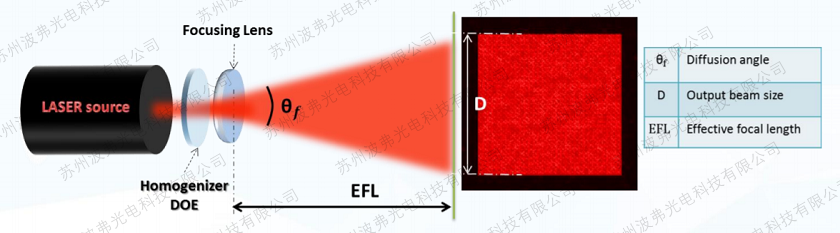

均化器（擴散器）的產品可使任何準直輸入光束轉換為具有強度均勻的輸出光束。對于任何波長以及任何形狀都適用。
光束均質器在許多需要清晰定義的光束形狀且強度分布隨機分布的應用中非常有用。
光束均質器的輸出主要取決于輸入光束：在光束均質器的使用上，相比單模激光，多模激光光束實際上更具優勢，因?yàn)槠漭^低的相干性會降低斑點的可見性，從而可得到強度更為均一的輸出光。
光束均化器（擴散器）的典型應用包括：激光束點整形；激光材料加工，例如：燒蝕，脫軌，標記，劃線和焊接；醫療/美容激光治療；準分子激光器的光束整形和熱點減少。 閱讀更多有關光束均質器應用的信息。
對于單模激光TEM00（M 2 <1.5），我們通常建議使用光束整形器平頂產品系列。
參考
| 型號/系列 | 波長* | 影像形狀 | θf[度] | 尺寸mm | 備注 |
| ED-201-I-Y-A | 1064 | Elliptical | 1.23x0.79 | 2.15x1.38 | |
| ED-203-I-Y-A | 1064 | Elliptical | 1.23x0.79 | 2.15x1.38 | |
| ED-204-I-Y-A | 1064 | Elliptical | 1.71x0.84 | 2.98x1.47 | |
| ED-205-I-Y-A | 1064 | Elliptical | 2.76x1.87 | 4.82x3.26 | |
| ED-206-I-Y-A | 1064 | Elliptical | 3.80x2.92 | 6.63x5.10 | |
| HD-200-I-Y-A | 1064 | Hexagonal | 2.15 | 3.75 | |
| HM-212-I-Y-A | 1064 | Square | 0.50x0.50 | 0.87x0.87 | |
| HM-260-I-Y-A | 1064 | Line | 2 | 3.49 | |
| HM-262-I-Y-A | 1064 | Line | 0.5 | 0.87 | |
| HM-263-I-Y-A | 1064 | Line | 0.5 | 0.87 | |
| HM-264-I-Y-A | 1064 | Square | 0.60x0.60 | 1.05x1.05 | |
| HM-267-I-Y-A | 1064 | Line | 8 | 13.99 | |
| HM-271-I-Y-A | 1064 | Square | 2.00x2.00 | 3.49x3.49 | |
| HM-272-I-Y-A | 1064 | Square | 0.55x0.55 | 0.96x0.96 | |
| HM-276-I-Y-A | 1064 | Square | 1.00x1.00 | 1.75x1.75 | |
| HM-285-I-Y-A | 1064 | Rectangular | 0.36x0.66 | 0.63x1.15 | |
| HM-288-I-Y-A | 1064 | Square | 0.54x0.54 | 0.94x0.94 | |
| HM-289-I-Y-A | 1064 | Line | 1 | 1.75 | |
| HM-290-I-Y-A | 1064 | Square | 4.00x4.00 | 6.98x6.98 | |
| HM-291-I-Y-A | 1064 | Line | 4 | 6.98 | |
| HM-303-I-Y-A | 1064 | Rectangular | 3.60x14.40 | 6.29x25.27 | |
| HM-320-I-Y-A | 1064 | Rectangular | 5.78x1.44 | 10.10x2.51 | |
| HM-322-I-Y-A | 1064 | Rectangular | 2.06x7.55 | 3.60x13.20 | |
| HM-323-I-Y-A | 1064 | Square | 0.33 | 0.58 | |
| HM-328-I-Y-A | 1064 | Square | 5.00x5.00 | 8.73x8.73 | |
| HM-336-I-Y-A | 1064 | Line | 8 | 13.99 | |
| HM-337-I-Y-A | 1064 | Line | 20.1 | 35.45 | |
| HM-338-I-Y-A | 1064 | Line | 30 | 53.59 | |
| HM-346-I-Y-A | 1064 | Line | 5 | 8.73 | |
| HM-349-I-Y-A | 1064 | Rectangular | 3.60x14.40 | 6.29x25.27 | Optimized For M^2>25 |
| HM-350-I-Y-A | 1064 | Rectangular | 6.40x1.05 | 11.18x1.83 | |
| HM-352-I-Y-A | 1064 | Line | 3 | 5.24 | |
| HM-353-I-Y-A | 1064 | Line | 15 | 26.33 | |
| HM-356-I-Y-A | 1064 | Rectangular | 3.60x14.40 | 6.29x25.27 | |
| HM-357-I-Y-A | 1064 | Rectangular | 9.40x7.40 | 16.44x12.93 | Optimized For M^2>12 |
| HM-358-I-Y-A | 1064 | Rectangular | 0.91x1.82 | 1.59x3.18 | |
| HM-361-I-Y-A | 1064 | Square | 0.26x0.26 | 0.45x0.45 | |
| HM-367-I-Y-A | 1064 | Square | 10.10x10.10 | 17.67x17.67 | |
| HM-369-I-Y-A | 1064 | Rectangular | 5.78x1.44 | 10.10x2.51 | |
| HM-370-I-Y-A | 1064 | Frame (Rect) | 6.04x4.35 | 10.55x7.60 | For M2>80 |
| HM-373-I-Y-A | 1064 | Line | 35 | 63.06 | |
| HM-378-I-Y-A | 1064 | Line | 0.25 | 0.44 | |
| HM-379-I-Y-A | 1064 | Line | 0.5 | 0.87 | |
| HM-380-I-Y-A | 1064 | Line | 0.75 | 1.31 | |
| HM-381-I-Y-A | 1064 | Line | 1 | 1.75 | |
| HM-387-I-Y-A | 1064 | Line | 15 | 26.33 | |
| HM-388-I-Y-A | 1064 | Rectangular | 1.69x1.11 | 2.95x1.94 | Optimized For M^2>40 |
| HM-389-I-Y-A | 1064 | Line | 1 | 1.75 | |
| HM-390-I-Y-A | 1064 | Square | 29.98x29.98 | 53.55x53.55 | |
| HM-395-I-Y-A | 1064 | Line | 2.5 | 4.36 | Optimized For M^2>30 |
| RD-203-I-Y-A | 1064 | Round | 0.5 | 0.87 | |
| RD-204-I-Y-A | 1064 | Round | 2 | 3.49 | |
| RD-208-I-Y-A | 1064 | Round | 16 | 28.11 | |
| RD-213-I-Y-A | 1064 | Round | 0.5 | 0.87 | Requires Centration |
| RD-215-I-Y-A | 1064 | Round | 4 | 6.98 | |
| RD-216-I-Y-A | 1064 | Round | 1.6 | 2.79 | |
| RD-220-I-Y-A | 1064 | Round | 0.33 | 0.58 | Requires Centration |
| RD-221-I-Y-A | 1064 | Round | 0.16 | 0.28 | Requires Centration |
| RD-222-I-Y-A | 1064 | Round | 0.16 | 0.28 | Requires Centration |
| RD-227-I-Y-A | 1064 | Round | 1 | 1.75 | |
| RD-228-I-Y-A | 1064 | Round | 0.5 | 0.87 | |
| RD-231-I-Y-A | 1064 | Round | 1 | 1.75 | |
| RD-232-I-Y-A | 1064 | Round | 2 | 3.49 | M-Shape |
| RD-246-I-Y-A | 1064 | Round | 3 | 5.24 | |
| RD-247-I-Y-A | 1064 | Round | 0.5 | 0.87 | M-Shape |
| RD-252-I-Y-A | 1064 | Round | 3.44 | 6.01 | |
| RD-253-I-Y-A | 1064 | Round | 5.27 | 9.2 | |
| RD-254-I-Y-A | 1064 | Round | 1 | 1.75 | M-Shape |
| RD-270-I-Y-A | 1064 | Round | 0.099 | 0.17 | |
| RD-279-I-Y-A | 1064 | Round | 0.027 | 0.047 | |
| RD-278-I-Y-A | 1064 | Round | 5.64 | 9.85 | |
| RD-283-I-Y-A | 1064 | Round | 6.87 | 12 | |
| RD-284-I-Y-A | 1064 | Round | 2 | 3.49 | |
| RD-286-I-Y-A | 1064 | Round | 0.16 | 0.28 | Requires Centration |
| RD-287-I-Y-A | 1064 | Round | 0.67 | 1.17 | |
| RD-293-I-Y-A | 1064 | Round | 1 | 1.75 | |
| RD-294-I-Y-A | 1064 | Round | 0.5 | 0.87 | |
| RD-299-I-Y-A | 1064 | Round | 1.37 | 2.39 | |
| RD-300-I-Y-A | 1064 | Round | 3 | 5.24 | |
| GD-241-I-Y-A | 1064 | Gaussian | 0.3 | 0.52 | Gaussian Profile |
| GD-242-I-Y-A | 1064 | Gaussian | 0.5 | 0.87 | Gaussian Profile |
| ED-207-I-Y-A | 1064 | Elliptical | 1.71x0.84 | 2.98x1.47 | |
| HH-233-I-Y-A | 1064 | Square | 20.00x20.00 | 35.27x35.27 | High Homogeneity |
| HH-308-I-Y-A | 1064 | Square | 2.75x2.75 | 4.80x4.80 | High Homogeneity |
| HH-311-I-Y-A | 1064 | Square | 2.00x2.00 | 3.49x3.49 | High Homogeneity |
| HH-315-I-Y-A | 1064 | Rectangular | 5.78x1.44 | 10.10x2.51 | High Homogeneity |
| HH-317-I-Y-A | 1064 | Rectangular | 2.06x7.55 | 3.60x13.20 | High Homogeneity |
| HH-318-I-Y-A | 1064 | Square | 20.50x20.50 | 36.17x36.17 | High Homogeneity |
| HH-321-I-Y-A | 1064 | Square | 2.75x2.75 | 4.80x4.80 | High Homogeneity |
| HH-329-I-Y-A | 1064 | Square | 5.50x5.50 | 9.61x9.61 | High Homogeneity |
| HH-330-I-Y-A | 1064 | Square | 0.70x0.70 | 1.22x1.22 | High Homogeneity |
| HH-331-I-Y-A | 1064 | Rectangular | 3.44x2.30 | 6.01x4.01 | High Homogeneity |
| HH-332-I-Y-A | 1064 | Rectangular | 6.87x2.30 | 12.00x4.01 | High Homogeneity |
| HH-333-I-Y-A | 1064 | Rectangular | 30.50x16.40 | 54.53x28.82 | High Homogeneity |
| HM-213-I-Y-A | 1064 | Square | 1.00x1.00 | 1.75x1.75 | High Efficiency |
| HM-273-I-Y-A | 1064 | Square | 10.00x10.00 | 17.50x17.50 | |
| HM-274-I-Y-A | 1064 | Square | 20.00x20.00 | 35.27x35.27 | |
| HM-286-I-Y-A | 1064 | Line | 22.9 | 40.51 | |
| HM-307-I-Y-A | 1064 | Square | 0.50x0.50 | 0.87x0.87 | High Efficiency |
| HM-308-I-Y-A | 1064 | Square | 1.35x1.35 | 2.36x2.36 | |
| HM-309-I-Y-A | 1064 | Square | 13.48x13.48 | 23.64x23.64 | |
| HM-310-I-Y-A | 1064 | Square | 29.98x29.98 | 53.55x53.55 | |
| HM-312-I-Y-A | 1064 | Line | 10 | 17.5 | |
| HM-313-I-Y-A | 1064 | Line | 15 | 26.33 | |
| HM-314-I-Y-A | 1064 | Line | 20 | 35.27 | |
| HM-315-I-Y-A | 1064 | Line | 25 | 44.34 | |
| HM-316-I-Y-A | 1064 | Line | 30 | 53.59 | |
| HM-317-I-Y-A | 1064 | Line | 35 | 63.06 | |
| HM-318-I-Y-A | 1064 | Line | 40 | 72.79 | |
| HM-319-I-Y-A | 1064 | Line | 45 | 82.84 | |
| HM-321-I-Y-A | 1064 | Line | 5 | 8.73 | |
| HM-324-I-Y-A | 1064 | Square | 3.38x3.38 | 5.90x5.90 | |
| HM-325-I-Y-A | 1064 | Square | 10.10x10.10 | 17.67x17.67 | |
| HM-340-I-Y-A | 1064 | Square | 2.50x2.50 | 4.36x4.36 | |
| HM-347-I-Y-A | 1064 | Square | 1.00x1.00 | 1.75x1.75 | |
| HM-348-I-Y-A | 1064 | Line | 15 | 26.33 | |
| HM-354-I-Y-A | 1064 | Rectangular | 3.60x14.40 | 6.29x25.27 | Optimized For M^2>25 |
| HM-359-I-Y-A | 1064 | Square | 0.68x0.68 | 1.19x1.19 | |
| HM-383-I-Y-A | 1064 | Line | 2 | 3.49 | |
| HM-391-I-Y-A | 1064 | Square | 0.33 | 0.58 | |
| HM-392-I-Y-A | 1064 | Square | 0.68x0.68 | 1.19x1.19 | |
| HM-393-I-Y-A | 1064 | Square | 1.35x1.35 | 2.36x2.36 | |
| RD-202-I-Y-A | 1064 | Round | 0.75 | 1.31 | High Efficiency |
| RD-226-I-Y-A | 1064 | Round | 27.4 | 48.75 | |
| RD-238-I-Y-A | 1064 | Round | 11.9 | 20.84 | |
| RD-239-I-Y-A | 1064 | Round | 13.86 | 24.31 | |
| RD-255-I-Y-A | 1064 | Round | 1 | 1.75 | |
| RD-269-I-Y-A | 1064 | Round | 0.19 | 0.33 | High Efficiency |
| RD-285-I-Y-A | 1064 | Round | 0.5 | 0.87 | |
| RD-306-I-Y-A | 1064 | Round | 0.41 | 0.72 | High Efficiency |
| RD-307-I-Y-A | 1064 | Round | 0.41 | 0.72 | High Efficiency |
| RH-308-I-Y-A | 1064 | Round | 16 | 28.11 | High Homogeneity |
| RH-315-I-Y-A | 1064 | Round | 4 | 6.98 | High Homogeneity |
| RH-317-I-Y-A | 1064 | Round | 2 | 3.49 | High Homogeneity |
| RH-318-I-Y-A | 1064 | Round | 2 | 3.49 | High Homogeneity |
| RH-320-I-Y-A | 1064 | Round | 4 | 6.98 | High Homogeneity |
| RH-324-I-Y-A | 1064 | Round | 4 | 6.98 | High Homogeneity |
| RH-326-I-Y-A | 1064 | Round | 11.9 | 20.84 | High Homogeneity |
| HH-309-I-Y-A | 1064 | Square | 20.00x20.00 | 35.27x35.27 | High Homogeneity |
| HH-319-I-Y-A | 1064 | Rectangular | 30.50x16.40 | 54.53x28.82 | High Homogeneity |
| HH-320-I-Y-A | 1064 | Square | 10.00x10.00 | 17.50x17.50 | High Homogeneity |
| RD-245-I-Y-A | 1064 | Round | 0.26 | 0.45 | High Efficiency |
| RD-261-I-Y-A | 1064 | Round | 0.41 | 0.72 | High Efficiency |
| RD-280-I-Y-A | 1064 | Round | 0.19 | 0.33 | High Efficiency |
| RH-321-I-Y-A | 1064 | Round | 27.4 | 48.75 | High Homogeneity |
| RH-328-I-Y-A | 1064 | Round | 11.9 | 20.84 | High Homogeneity |
| 備注1*波長 | 193nm-10600nm，多種波長可選。 | ||||
| 更多產品信息，需求信息，聯系蘇州leyu集團光電科技有限公司相關銷售人員。 | |||||
